High-Capacity Thermal Water Tank for Continuous Hot Water Delivery

A high-capacity thermal water tank changes this equation. By combining advanced thermal energy storage with intelligent recharge strategies, modern heat storage tanks deliver continuous hot water while dramatically lowering operating costs. This article explains how a high-capacity thermal water heater system works, why it excels in high-load environments, and how recharge-cycle and gallon-per-hour modeling ensure performance you can trust.

Facilities such as hotels and laundries experience sharp, recurring spikes in hot water demand. Morning showers, linen washing, kitchen prep, and sanitation loads often overlap, creating demand profiles that are impossible for standard tank or on-demand heaters to handle efficiently.

In real-world installations, these systems face three structural problems:

• Instantaneous demand exceeds production – causing temperature drops and complaints.
• Short-cycling equipment – which increases wear, maintenance, and energy waste.
• Peak electricity or fuel charges – driven by heaters firing at the worst possible time.

A thermal water tank reframes the problem. Instead of forcing heaters to chase demand in real time, the system stores thermal energy in advance and releases it when needed—much like a battery, but for heat.

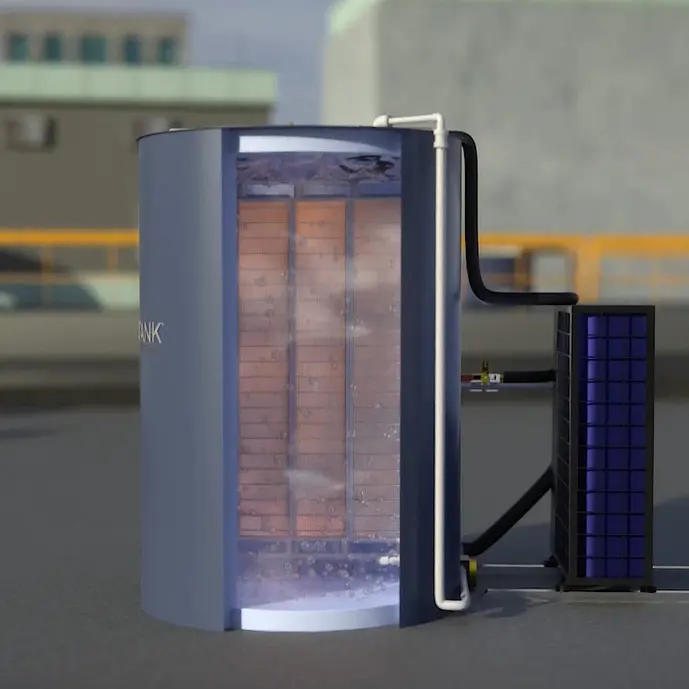

At its core, a thermal water tank is an unpressurized thermal energy solution that stores heat rather than potable water. The stored thermal mass is charged by one or more energy sources—such as heat pumps, or waste heat—and delivers that energy to domestic hot water through a high-performance heat exchanger. Unlike conventional tanks, the stored water never leaves the system. This design eliminates corrosion, mineral scaling, and pressure-related fatigue while extending system life well beyond traditional steel tanks. From an engineering perspective, the advantage is control: operators decide when to charge the tank and when to draw from it, aligning energy use with off-peak rates and predictable load patterns.

The following facilities consistently see the highest returns from high-capacity thermal energy storage:

• Hotels and resorts with morning and evening usage spikes
• Commercial laundries operating continuous wash cycles
• Multi-family and student housing with synchronized usage patterns
• Healthcare and senior living facilities requiring temperature stability
• Food-service and hospitality venues with sanitation-driven demand

In these settings, the thermal water tank becomes the system backbone, smoothing demand while protecting downstream heaters from stress.

Recharge cycles define how quickly a thermal water tank can be replenished after energy is drawn. In high-load applications, recharge performance is more important than total storage volume alone.

A properly designed thermal energy solution ensures that:

• The tank recharges faster than it discharges during normal operation
• Energy input is spread across low-cost hours
• Backup systems are rarely, if ever, required

This is achieved by pairing storage volume with appropriately sized heat sources. For example, a mid-capacity heat pump charging a high-capacity thermal water tank can operate steadily throughout the day, avoiding the inefficiencies of oversized, short-cycling equipment. The result is consistent outlet temperature—even during peak demand windows—without increasing installed heater capacity.

One of the most misunderstood aspects of thermal storage is output capacity. High-capacity heat storage tanks are not rated only by gallons stored, but by gallons per hour delivered at a target temperature.

Design engineers model this by combining:

• Stored thermal energy (kWh or BTU)
• Desired delivery temperature (e.g., 140°F)
• Incoming cold-water temperature
• Heat exchanger efficiency
• Recharge rate from energy sources

This modeling allows designers to predict how many gallons per hour the system can supply continuously—making it possible to support large hotels or laundries without oversizing boilers or heaters.

Hotels: Guest Experience Without Energy Penalties

In hospitality, a single cold shower can undo thousands of dollars in marketing spend. Thermal water tanks eliminate this risk by ensuring stored energy is always available during peak usage periods, while recharge occurs invisibly in the background.

Laundries: Continuous Cycles Without Downtime

Commercial laundries benefit even more dramatically. Instead of cycling burners or heaters on every wash load, thermal energy storage delivers steady output, allowing equipment to operate at maximum throughput without thermal bottlenecks.

High-capacity thermal water tanks are designed to integrate seamlessly with modern energy systems. Heat pumps provide high-efficiency baseline charging, while photovoltaic-thermal systems can further reduce grid dependency. Waste heat recovery from HVAC or refrigeration systems adds another layer of efficiency. This flexibility makes thermal energy storage a future-proof investment, capable of adapting as energy prices, regulations, and sustainability goals evolve.

A high-capacity thermal water tank makes sense in facilities with heavy, predictable hot water demand such as hotels, laundries, healthcare buildings, and multi-family properties. These environments experience concentrated usage peaks that conventional water heaters struggle to handle without temperature drops or energy spikes. It is especially effective where energy costs are driven by demand charges or time-of-use pricing, because thermal energy can be stored during off-peak hours and used later without stressing the electrical or fuel system. This makes the solution well suited for electrification and decarbonization strategies using heat pumps. A thermal water tank is also ideal when space is limited or system reliability is critical. Modular thermal energy storage provides consistent hot water, extends equipment life, and delivers long-term operational stability where uninterrupted performance matters most.
