How does a Heat Pump work

Capturing ambient energy to lower your cost of operation

Benefits

Beyond federal tax credits, PowerPanel’s solutions unlock additional financial incentives:

High Efficiency

The heat pump’s COP (3–4+) is enhanced by PowerPanel’s pre-heated water, maximizing energy output per unit of electricity.

Cost Savings

Combining solar electricity, thermal storage, and ambient energy reduces operational costs significantly.

Decarbonization

Minimizes reliance on fossil fuels for heating and electricity.

Flexibility

The Gen₂O tank supports various applications (hot water, space heating) and integrates seamlessly with heat pumps.

What is a Heat Pump?

A heat pump is a device that transfers heat from one location to another, typically using electricity to move heat against its natural flow (e.g., from a colder area to a warmer one). It’s widely used for heating and cooling buildings or heating water, leveraging ambient energy (from air, ground, or water) to improve efficiency and lower operational costs.

When integrated with PowerPanel’s photovoltaic-thermal (PVT) solar capture and Gen₂O thermal storage tanks, heat pumps enhance energy efficiency by combining renewable solar energy with stored thermal energy. How heat pumps work, their use of ambient energy, the coefficient of performance (COP), and their connection to PowerPanel’s technology below.

How a Heat Pump Works

A heat pump operates on the principle of transferring heat using a refrigeration cycle, similar to an air conditioner or refrigerator, but reversible for both heating and cooling. Here’s the process:

Heat Pump Components:

  • Evaporator: Absorbs heat from a source (e.g., outside air, ground, or water).
  • Compressor: Compresses refrigerant to increase its temperature and pressure.
  • Condenser: Releases heat to the desired location (e.g., indoor air or water).
  • Expansion Valve: Reduces refrigerant pressure, cooling it for the next cycle.
  • Refrigerant: A fluid that cycles through the system, absorbing and releasing heat.

Heating Mode:

  • The evaporator absorbs heat from an external source (e.g., ambient air, even at low temperatures like 0°F, as air contains thermal energy unless at absolute zero).
  • The refrigerant, now a low-pressure gas, absorbs this heat and evaporates.
  • The compressor compresses the refrigerant, raising its temperature (e.g., to 100–150°F) and pressure.
  • In the condenser, the hot refrigerant releases heat to the indoor space (for air-source heat pumps) or a water tank (for water heating). The refrigerant condenses back to a liquid.
  • The expansion valve lowers the refrigerant’s pressure, cooling it to restart the cycle.

Cooling Mode:

The cycle reverses (using a reversing valve in air-source heat pumps), absorbing heat from indoors and releasing it outdoors, acting like an air conditioner.

Types of Heat Pumps:

Air-Source: Extracts heat from outdoor air (most common, used in PowerPanel systems).

Ground-Source (Geothermal): Uses stable ground temperatures for higher efficiency.



Water-Source: Draws heat from a water body (less common).

Capturing Ambient Energy to Lower Operational Costs

Heat pumps are highly efficient because they don’t generate heat but move it from ambient sources, requiring only electricity to power the compressor and fans/pumps. This reduces operational costs significantly:

Ambient Energy Sources:

  • Air: Even cold air (e.g., 20°F) contains usable heat. Air-source heat pumps extract this energy, making them effective in various climates.
  • Ground/Water: Geothermal or water-source systems tap into stable, higher-temperature sources for better efficiency but higher installation costs.
  • Solar-Augmented: When paired with PowerPanel’s PVT panels, heat pumps can use solar thermal energy stored in Gen₂O thermal storage tanks, further reducing reliance on grid electricity.

Cost Savings:

  • Heat pumps use 3–5 times less energy than electric resistance heaters (e.g., baseboard heaters) because they transfer rather than generate heat.
  • By capturing ambient energy, heat pumps reduce the need for fossil fuel-based heating (e.g., gas furnaces), lowering energy bills and emissions.
  • Integration with PowerPanel’s PVT system, which generates electricity and thermal energy, offsets electricity costs for the heat pump and provides pre-heated water, reducing the pump’s workload.

Example: In a PowerPanel system, PVT panels capture 84% of solar energy (23% as electricity, ~61% as thermal energy). The electricity powers the heat pump, while the thermal energy pre-heats water in the Gen₂O tank, reducing the energy needed to reach the desired temperature (e.g., 140°F for hot water). This can lower water heating costs from 42 cents/kWh (electric heater) to ~6 cents/kWh, as seen in PowerPanel’s St. Thomas resort installation.

Understanding the Coefficient of Performance (COP)

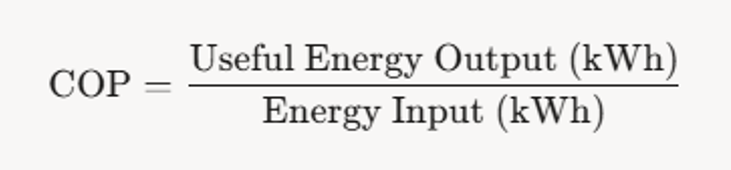

The Coefficient of Performance (COP) measures a heat pump’s efficiency, defined as the ratio of useful heat output (or cooling output) to the energy input (typically electricity):

● Heating COP:
A COP of 3 means the heat pump delivers 3 kWh of heat for every 1 kWh of electricity consumed, making it 300% efficient compared to electric resistance heaters (COP = 1).
Typical air-source heat pumps have a COP of 2.5–4 in moderate climates, dropping to 1.5–2 in very cold conditions due to lower ambient heat availability.
Ground-source heat pumps achieve higher COPs (3.5–5) due to stable ground temperatures.

● Cooling COP:
In cooling mode, the COP measures cooling output versus energy input, often expressed as the Energy Efficiency Ratio (EER) or Seasonal Energy Efficiency Ratio (SEER).

● Factors Affecting COP:
Ambient Temperature: Higher source temperatures (e.g., warmer air or solar-heated water) increase COP.
System Design: Efficient compressors and heat exchangers improve performance.
Load Requirements: Smaller temperature differences (e.g., heating water from 100°F to 140°F versus 50°F to 140°F) boost COP.

● PowerPanel Integration:
PowerPanel’s PVT panels provide pre-heated water (e.g., 100–120°F) to the Gen₂O tank, reducing the temperature lift required by the heat pump. This increases the COP, as the pump uses less energy to reach the target temperature.
The PVT’s electricity output powers the heat pump, further lowering operational costs by reducing grid dependency.

Connection with PowerPanel’s Thermal Storage Tanks and PVT Solar Capture

PowerPanel’s dual decarbonization solution integrates heat pumps with PVT panels and Gen₂O thermal storage tanks to maximize efficiency and decarbonize energy use. Here’s how they connect:
PVT Solar Capture

PowerPanel’s hybrid PVT panels capture 84% of available solar energy:
Electrical Output: ~23% of solar energy is converted to electricity (e.g., 2.7 kW per panel array), which can power the heat pump or other loads.
Thermal Output: ~61% is captured as heat (e.g., 12.7 kW thermal), heating water to 100–120°F, which is stored in the Gen₂O tank.

The thermal output cools the PV cells, improving electrical efficiency, while the captured heat reduces the heat pump’s workload.

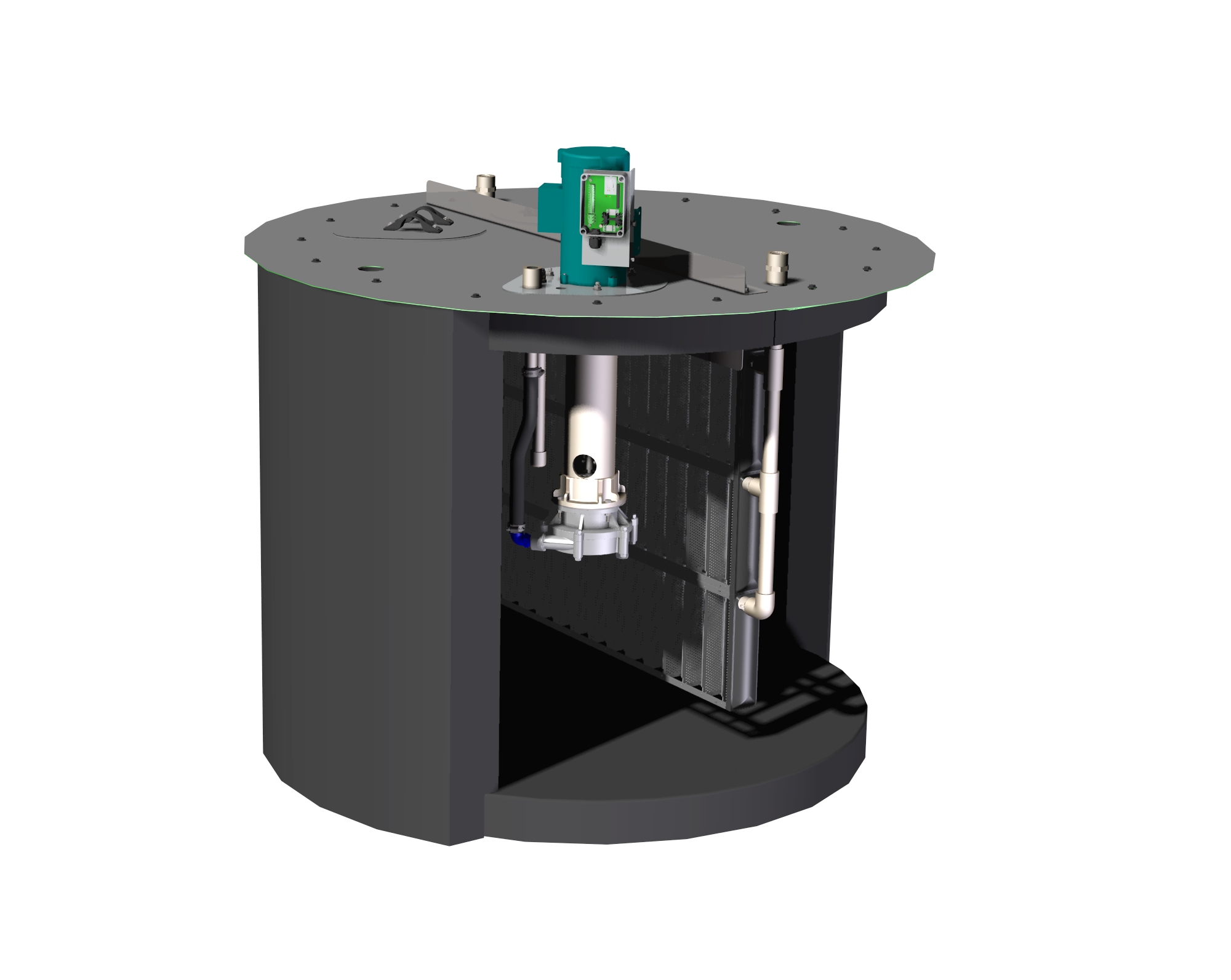

Gen₂O Thermal Storage Tanks

These lightweight, recyclable expanded polypropylene foam tanks store hot water (up to 200°F) with minimal heat loss (~3.6°F over 24 hours).

The tanks hold solar-heated water from the PVT panels, providing a stable heat source for the heat pump or direct use (e.g., hot water for showers).

By storing thermal energy, the tanks ensure a consistent heat supply, even when solar input is low (e.g., at night), decoupling heat demand from solar availability.
Heat Pump Integration

The heat pump uses electricity from the PVT panels or the grid to extract additional heat from ambient air or the pre-heated water in the Gen₂O tank.

Enhanced COP: Pre-heated water from the tank (e.g., 100°F) requires less energy to reach target temperatures (e.g., 140°F) compared to cold water (e.g., 50°F). This increases the heat pump’s COP, often exceeding 3–4, compared to ~2.5 for standalone air-source heat pumps.

Operational Savings: The combination of free solar electricity and pre-heated water reduces the heat pump’s energy consumption, lowering costs significantly (e.g., ~6 cents/kWh for water heating in PowerPanel’s systems).

Practical Example

Setup: A PowerPanel system with PVT panels, a Gen₂O thermal storage tank, and an air-source heat pump is installed at a hospital.

Operation: PVT panels generate 2.7 kW of electricity to run the heat pump and 12.7 kW of thermal energy to heat water to 110°F, stored in the Gen₂O tank.

The heat pump, with a COP of 3.5 (due to pre-heated water), uses 1 kWh of electricity to deliver 3.5 kWh of heat, raising the water to 140°F for hospital use.

The thermal storage tank’s insulation ensures minimal heat loss, providing hot water 24/7.

Savings: The system reduces water heating costs by ~85% compared to electric heaters, with a payback period of ~2 years, as seen in PowerPanel’s case studies.

Bottom Line

Heat pumps work by transferring ambient heat (from air, ground, or water) to provide efficient heating or cooling, with a COP of 2.5–4, indicating 250–400% efficiency compared to electric heaters. By capturing ambient energy, they lower operational costs significantly.

When integrated with PowerPanel’s PVT panels (capturing 84% of solar energy) and Gen₂O thermal storage tanks, the system enhances efficiency further by using solar electricity to power the heat pump and stored solar thermal energy to reduce the pump’s workload, boosting COP and cutting costs (e.g., to 6 cents/kWh for water heating). This combination maximizes renewable energy use, reduces carbon emissions, and delivers substantial savings, making it ideal for commercial and residential applications.
